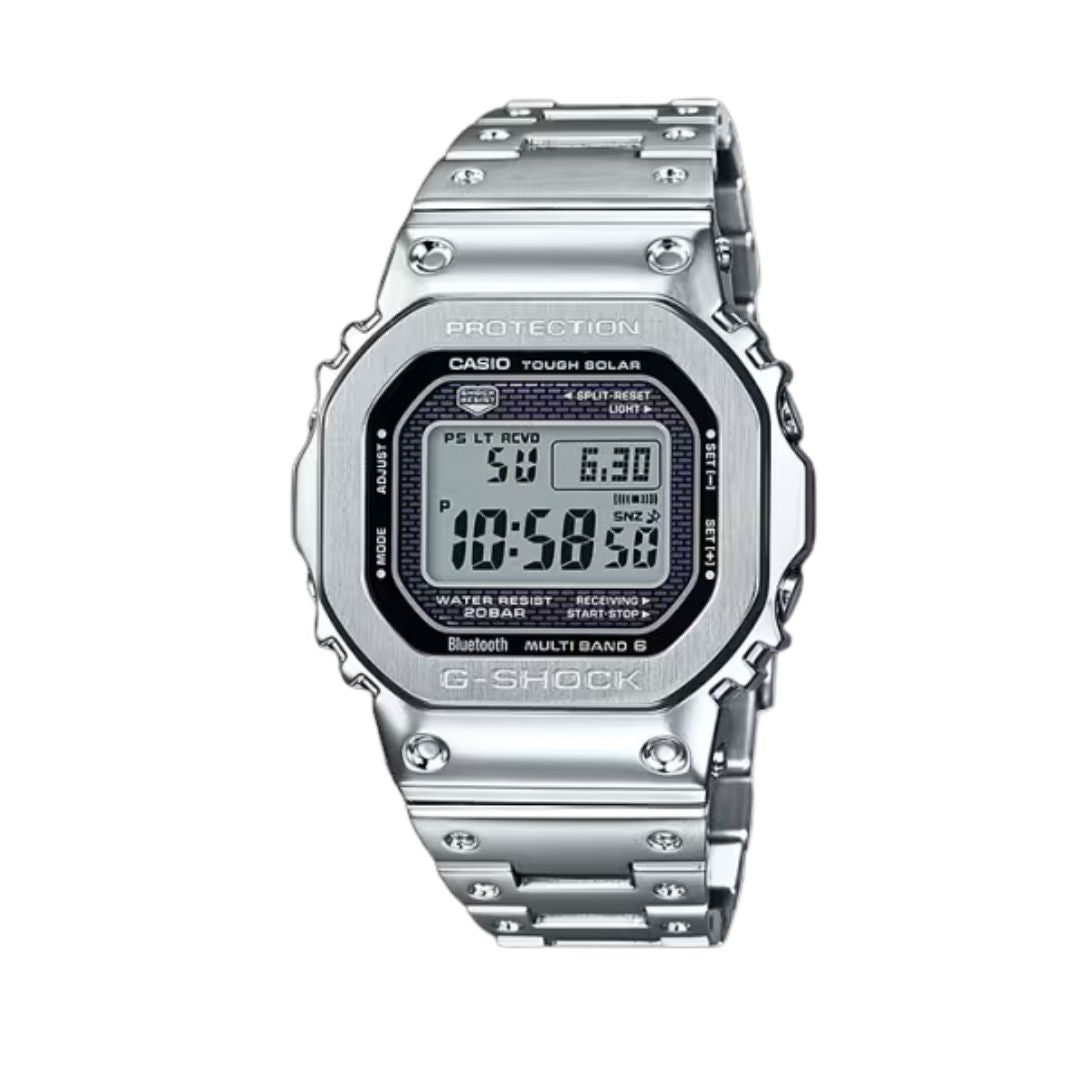

The DW-5000C is the original G-SHOCK model from 1983. The GMW-B5000 Series has inherited its characteristic square design and been given the full metal treatment along with upgraded features including smartphone linking. The watch has been given a full-metal case by using a shock-resistant fine resin cushioning material inserted between the case and the sturdy stainless steel metal bezel. High-density mounting technology also allows the watch to maintain its size. The back of the watch features a solid Screw Lock Back and has been DLC treated for resistance to wear. The metal band has been dimple processed, inheriting the Resin Band design of the original. Visibility too has been enhanced via use of a film solar cell and STN-LCD (liquid crystal).
Basic Information
- Case size (L× W× H) 49.3 × 43.2 × 13 mm
- Weight 167 g
- Case and bezel material: Stainless steel
- Band Stainless Steel Band, Solid Band, One-touch 3-fold Clasp
- Construction Shock Resistant
- Water resistance 200-meter water resistance
- Time adjustment: Radio-controlled Watch; Multi band 6
- Power supply and battery life: Tough Solar (Solar powered)
Exterior
- Glass Mineral Glass
- Back plate: Screw Lock Back
Smartphone Link/ Apps connectivity feature
- Smartphone Link feature: Mobile link (Wireless linking using Bluetooth®)
- Apps: CASIO WATCHES
Watch Feature
- World time
- 39 time zones (39 cities +coordinated universal time), daylight saving on/off, Home city/World time city swapping, auto summer time (DST) switching
Stopwatch
- 1/100-second stopwatch
- Measuring capacity:
- 00'00''00~59'59''99 (for the first 60 minutes)
- 1:00'00~23:59'59 (after 60 minutes)
Measuring unit:
- 1/100 second (for the first 60 minutes)
- 1 second (after 60 minutes)
- Measuring modes: Elapsed time, split time, 1st-2nd place times
Timer
- Countdown timer
- Measuring unit: 1 second
- Countdown range: 24 hours
- Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments)
Alarm/hourly time signal
- 5 daily alarms (with 1 snooze alarm)
- Hourly time signal
Light
- LED backlight (Super illuminator)
- Full auto LED light, selectable illumination duration (2 seconds or 4 seconds), afterglow
Light color
-
LED: White
Calendar
- Full auto-calendar (to year 2099)
Mute feature
- Button operation tone on/off
Energy saving feature
- Power Saving (display goes blank to save power when the watch is left in the dark)
Battery display/alert
- Low battery alert
Accuracy
- Accuracy: ±15 seconds per month (with no signal calibration and mobile link function)
Run time
- Approx. battery operating time: 10 months on rechargeable battery (operation period with normal use without exposure to light after charge) 22 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Other features
-
12/24-hour format
- Date/month display swapping: Day display (days of the week selectable in six languages)
- Regular timekeeping:
- Hour, minute, second, pm, month, date, day
Time adjustment details
- Time Calibration Signals:
- Station name: DCF77 (Mainflingen, Germany)
- Frequency: 77.5 kHz
- Station name: MSF (Anthorn, England)
- Frequency: 60.0 kHz
- Station name: WWVB (Fort Collins, United States)
- Frequency: 60.0 kHz
- Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
- Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
- Station name: BPC (Shangqiu City, Henan Province, China)
- Frequency: 68.5 kHz
- Time calibration signal reception
- Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful) *5 times a day for the Chinese calibration signal
- Manual receive The latest signal reception results
