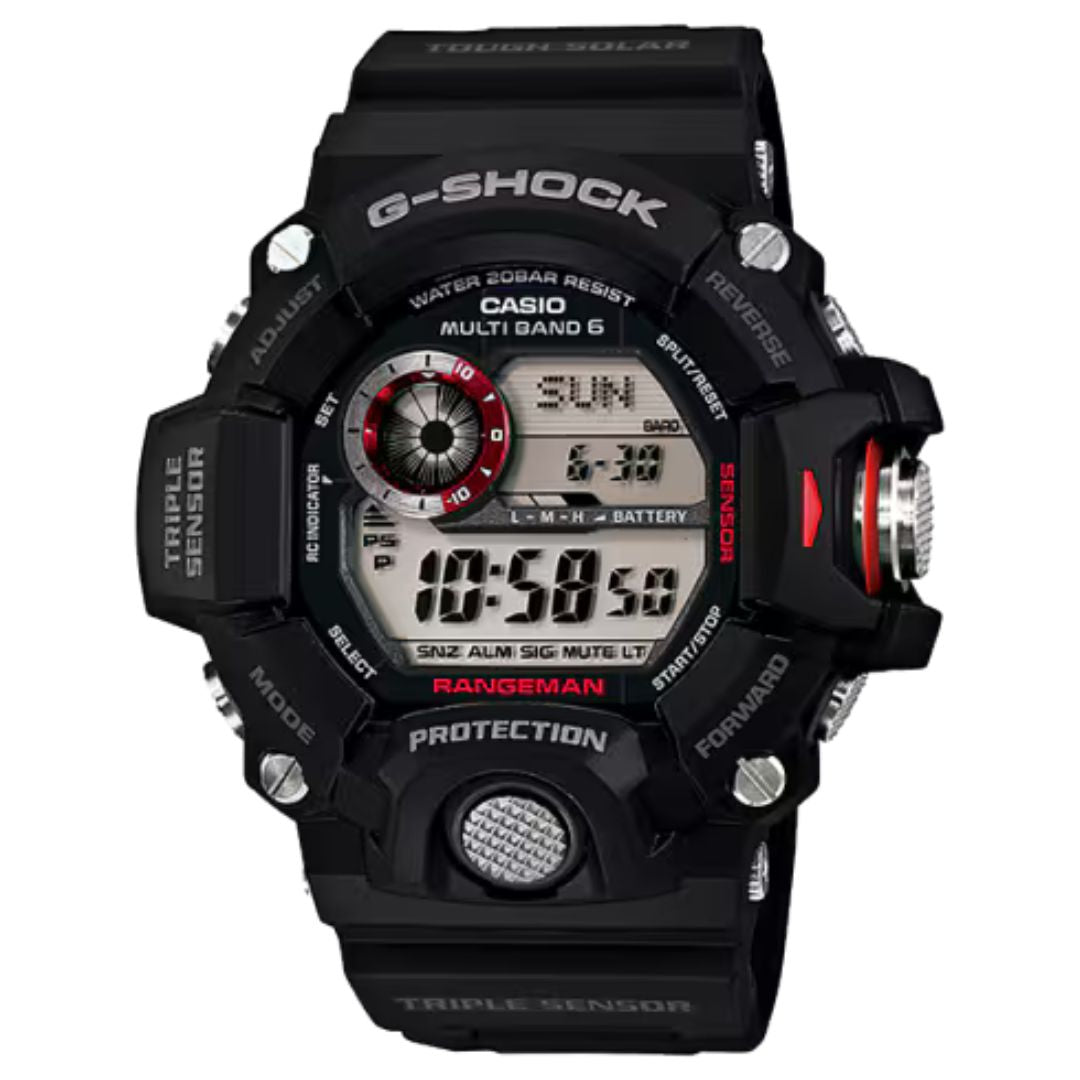

Introducing RANGEMAN, the latest addition to the Master of G series of tough and rugged timepieces that are designed and engineered to stand up to the most grueling conditions imaginable. RANGEMAN is Triple Sensor equipped, which makes it capable of keeping altitude, barometric pressure, temperature, and direction readings at your fingertips. Cylindrical buttons provide outstanding operation and improved resistance to impact. The frequently used sensor button (center right) has a metal cover that protects it against lateral impact and keeps foreign matter out. Pressing the sensor button in any mode takes you directly to a sensor screen. All of this plus one-touch time recording, one-touch elapsed time measurement, world-renowned G-SHOCK toughness and durability, and much more makes RANGEMAN the perfect choice for rangers, rescue crews, and anyone else whose profession or activities demand unfailing reliability.
Basic Information
- Case size (L× W× H) 55.2 × 53.5 × 18.2 mm
- Weight: 93 g
- Case and bezel material: Resin
- Band: Resin Band
- Construction: Shock Resistant
- Water resistance 200-meter water resistance
- Time Adjustment: Radio-controlled Watch; Multi band 6
- Power supply and battery life: Tough Solar (Solar powered)
Sensor Feature
- Altimeter
- Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.)
- Measuring unit: 1 m (5 ft.)
- Altitude Memory Function:
- Manual Readings: 40 records, each containing date and time, direction angle, altitude, barometric pressure, and temperature
- Auto Save Data: High altitude, low altitude, cumulative ascent, cumulative descent (1 value each)
- Others: Relative altitude readings (-3,000 to 3,000 m)
- Selectable measurement interval: 5 seconds or 2 minutes
- *1 second for first 3 minutes only
-
*Changeover between meters (m) and feet (ft)Barometer
- Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
- Display unit: 1 hPa (0.05 inHg)
- Atmospheric pressure tendency graph (past 42 hours of readings)
- Atmospheric pressure differential graphic Barometric pressure tendency information alarm (beep and arrow indicate significant changes in pressure) *Changeover between hPa and inHg
- Digital compass
- Measures and displays direction as one of 16 points
- Measuring range: 0 to 359°
- Measuring unit: 1°
- 60 seconds continuous measurement
- Graphic direction pointer
- Bidirectional calibration
- Magnetic declination correction
- Bearing memory
- Thermometer
- Display range: -10 to 60℃ (14 to 140℉) Display unit: 0.1℃ (0.2℉) *Changeover between Celsius (℃) and Fahrenheit (℉)
Exterior
- Glass Mineral Glass
Watch Feature
World time
- World time
- 31 time zones (48 cities + coordinated universal time), daylight saving on/off
Sunrise /sunset Display
- Sunrise, sunset time display
- Sunrise time and sunset time for specific date, daylight pointers
Stopwatch
- 1/100-second stopwatch
- Measuring capacity: 999:59'59.99''
- Measuring modes: Elapsed time, split time, 1st-2nd place times
Timer
- Countdown timer
- Measuring unit: 1 second
- Countdown range: 24 hours
- Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments)
Alarm/hourly time signal
- 5 daily alarms (with 1 snooze alarm)
- Hourly time signal
Light
- LED backlight (Super Illuminator)
- Full auto LED light, selectable illumination duration, afterglow
Light color
- LED: White
Calendar
- Full auto-calendar (to year 2099)
Mute feature
- Button operation tone on/off
Energy saving feature
- Power Saving (hands stop to save power when the watch is left in the dark)
Battery display/alert
- Low battery alert
Accuracy
- ±15 seconds per month (with no signal calibration)
Run time
-
Approx. battery operating time:
8 months on rechargeable battery (operation period with normal use without exposure to light after charge) 23 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Other features
- 12/24-hour format
- Regular timekeeping:
- Digital: Hour, minute, second, pm, month, date, day
Time Adjustment Details
- Time Calibration Signals
- Station name: DCF77 (Mainflingen, Germany)
- Frequency: 77.5 kHz
- Station name: MSF (Anthorn, England)
- Frequency: 60.0 kHz
- Station name: WWVB (Fort Collins, United States)
- Frequency: 60.0 kHz
- Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
- Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
- Station name: BPC (Shangqiu City, Henan Province, China)
- Frequency: 68.5 kHz
- Time calibration signal reception: Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful)
- *5 times a day for the Chinese calibration signal
- Manual receive
- The latest signal reception results
Sensor Feature Details
- Manual data recording of up to 40 records (altitude, barometric pressure / temperature, bearing, time (Time Stamp))
